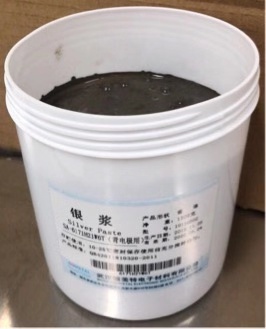

PERC背银浆料SA-6171D系列

更新:2021-08-06 09:54:23      点击:6208
  • 产品型号
  • 产品描述

    描述

产品介绍

 产品介绍(Description)

SA-6171D 系列 PERC 背银浆是我公司推出的一款低耗量、高附着力硅太阳能电池背银浆料,按照固含量不同可分为 SA-6171D18、SA-6171D62 和 SA-6171D65 等产品,具有优异的附着力、良好的可焊性和耐焊性、宽的烧结工艺窗口、卓越的抗老化能力和电池转换效率高等优点。

SA-6171D Series PERC Ag Paste is a new perc rear side silver paste series for silicon solar cells. According to solid content, it is divided into SA-6171D18,SA-6171D62 and SA-6171D65. This paste has some characteristics such as good soldered adhesion, excellent solderability, wide co-firing process window and outstanding anti-aging ability. Solar cells made by using SA-6171D will have a higher efficiency.

技术参数(Specifications)

产品型号(Type)

SA-6171D18

SA-6171D62

SA-6171D65

粘度(Viscosity)/Pa.s

10-50*

粒径(Fineness of grind)/μm

≤ 15

固含量(Solid content)

58±3

62±3

65±3

烧结厚度(Fired thickness)/μm

5-10

方阻(Resistivity)

/(milliohms/square)

≤ 6.0mΩ

转换效率(Efficiency)

≥ 22%

开路电压(Open voltage)/Voc

≥ 680mV

附着力(Adhesion)/N

≥ 3

*:可根据客户需求做出调整(Adjustments can be made according to customer needs)

使用工艺(Process)

丝网(Screen printing): 250-300 目(250-300 mesh)

烘干温度(Drying): 120-200℃/5-10min(circulating air oven),180-250℃/30s-2min 烧结工艺(Firing conditions):

温 度 (Temperature): 720-800℃ 处理时间(Annealing time): 1-3s

升温速度(Increasing speed): 10-15℃/s 降温速度(Cooling rate): 20-30℃/s

储存和存储期( Storage and Shelf Life)

密封避光状态保存, 5-25℃, 六个月。 Stored in a clean, stable environment at ambient
